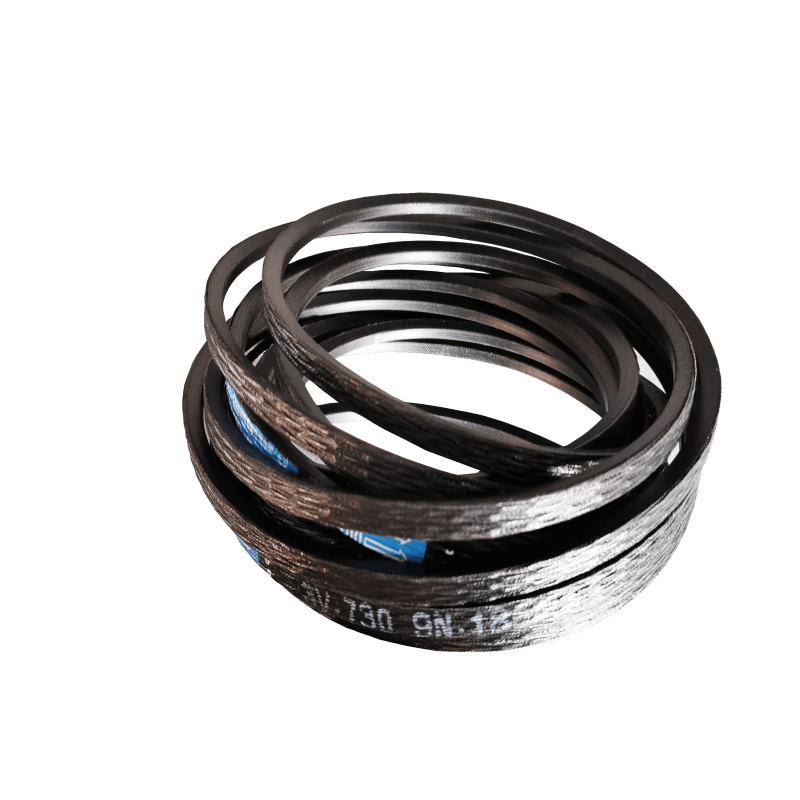

About product: Cross Section 3V, 5V, and 8V are industrial narrow wrapped V-belts designed for high-power transmission in compact drive systems. They provide superior efficiency and greater horsepower ratings in a narrower width compared to classical belts, making them ideal for demanding applications like heavy-duty motors, pumps, and industrial machinery.
About RUINIU: Our factory, with 90+ national patents and 95000㎡+ square land, strictly follows with the standard of ISO9001, ISO14001, ISO45001 and ISO50001.
Brand :
Zhongliang, Liannong, Agreap, Rnupower, JDREItem No :
3V 5V 8VCertificate :
ISO9001, ISO14001, ISO45001 and ISO50001Payment :
T/TProduct Origin :
ChinaShipping Port :
Shanghai Port, Ningbo Port, Tianjin Port, Lianyungang PortLead Time :
Zhongliang, Liannong, Agreap, Rnupower, JDRE| Section | Dimensions | ||
| Pitch Width(mm) | Top Width(mm) | Height(mm) | |
| 3V | 8.0 | 9.5 | 8.0 |
| 5V | 13.0 | 16 | 13.5 |
| 8V | 22.0 | 25.5 | 23.0 |
Product Features
| Type | Cross Section 3V 5V 8V Industrial Narrow Wrapped V belt |
| Feature | Oil & heat Resistant & Flexing abrasion resistant |
| Color | Black |
| Main material | Chloroprene rubber (CR), high-performance reinforced kevlar |
| Application | For agriculture and industrial machine running |
| Brand | Zhongliang, Liannong, Agreap, Rnupower |
| Standard or Nonstandard | Standard |
| Place of Origin | Wuxi City, Jiangsu Province, China |
| Suitable for combine harvester machine | Kubota, Yanmar |
| Working Temperature | -30℃ to + 100℃ |
Application
The 3V, 5V, and 8V industrial narrow wrapped V-belts are engineered for high-power transmission in compact machinery and heavy-duty industrial drives. They are widely used in applications such as pumps, compressors, conveyors, and industrial fans where space constraints and efficient power delivery are critical.
About product: Cross Section 3V, 5V, and 8V are industrial narrow wrapped V-belts designed for high-power transmission in compact drive systems. They provide superior efficiency and greater horsepower ratings in a narrower width compared to classical belts, making them ideal for demanding applications like heavy-duty motors, pumps, and industrial machinery. About RUINIU: Our factory, with 90+ national patents and 95000㎡+ square land, strictly follows with the standard of ISO9001, ISO14001, ISO45001 and ISO50001.
