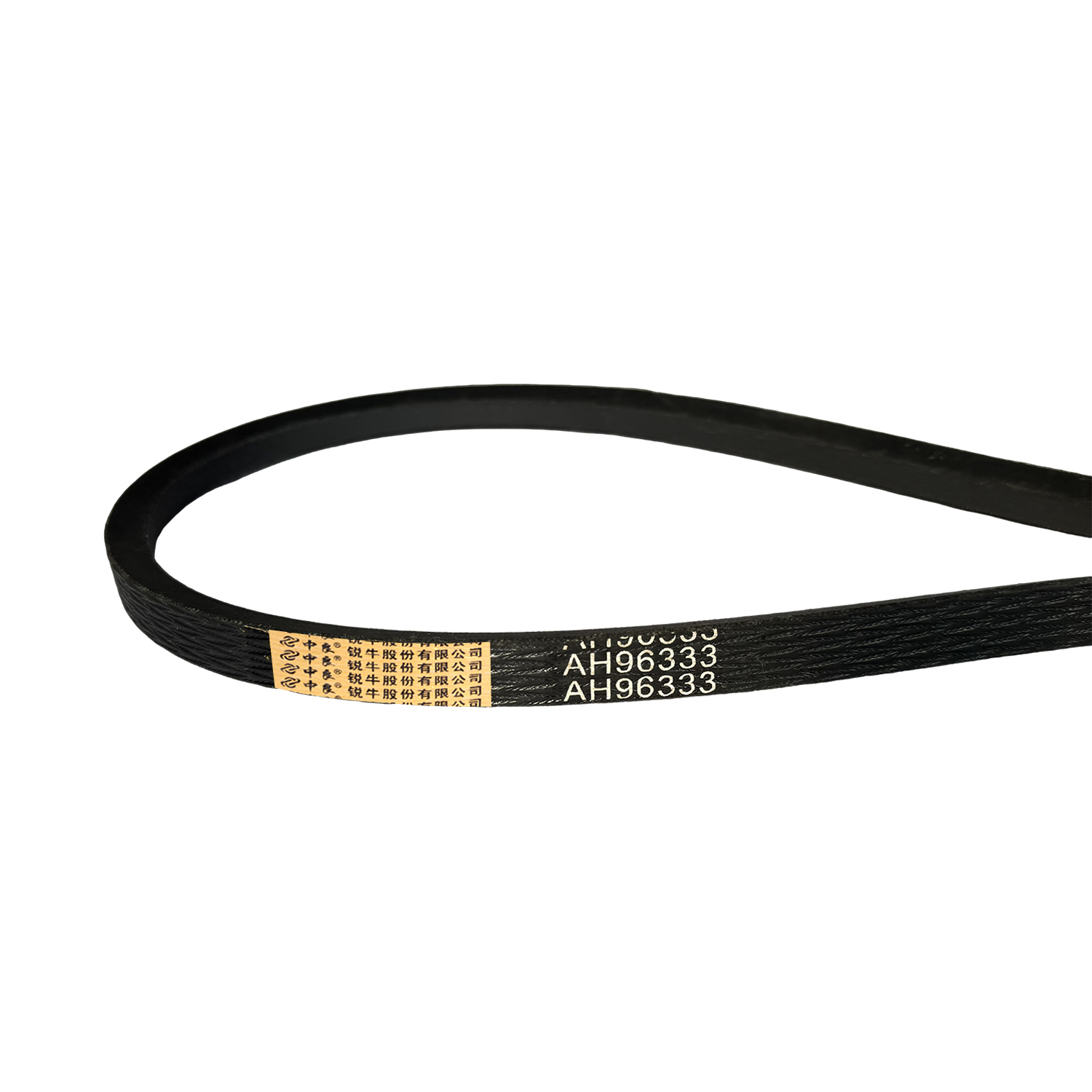

The AH96333 is an HB section wrapped V belt engineered for auxiliary drive positions on large combine harvesters. It features a premium aramid tensile member for exceptional load retention and a chloroprene rubber compound that withstands heat, oil, and weather exposure commonly found in harvesting operations.
Our factory, with our own CNAS laboratory, has passed the test of ISO9001, ISO14001, ISO45001 and ISO50001.
Brand :
ZHONGLIANGItem No :
HBCertificate :
ISO9001, ISO14001, ISO45001 and ISO50001Payment :
T/TProduct Origin :
ChinaShipping Port :
Shanghai Port, Ningbo Port, Tianjin Port, Lianyungang PortLead Time :
15-30 working daysWhat This Belt Is
The AH96333 is a heavy duty wrapped V belt designed for drives that demand both stability and endurance. It fits a range of auxiliary applications on large agricultural equipment where consistent belt tension and resistance to environmental stress are essential for reliable machine operation.
Aramid Tensile
The strength of this belt starts with its tensile cord. Aramid fibers offer significantly higher tensile strength than standard polyester while stretching far less under load. This means the AH96333 maintains its set tension over extended working periods, reducing the need for frequent retensioning. Aramid also resists flex fatigue better than conventional materials, so the belt lasts longer on drives with constant bending around smaller pulleys.
Chloroprene Rubber Compound
The rubber body of the AH96333 is formulated with a chloroprene based compound. This material choice provides several practical advantages in agricultural settings. It resists hardening and cracking when exposed to engine compartment heat. It maintains flexibility during cold morning starts. And it shrugs off the oil and grease that inevitably find their way onto drive components during routine servicing. The compound also offers good resistance to the ozone and UV exposure that can degrade lesser belts over time.
Wrapped Construction
A full fabric jacket encloses the entire belt body. This wrap protects the internal tensile cords from abrasive dust and physical wear. The fabric also helps the belt track smoothly in the pulley groove and reduces noise during operation.
Typical Applications
This belt is suited for auxiliary drive positions on large combine harvesters, including cleaning fan drives, straw walker drives, and other secondary systems that operate continuously during harvest. Its HB cross section matches many original equipment specifications for these positions.
Installation Reminder
Always check the condition of the pulley grooves when installing a new belt. Worn or glazed pulleys can reduce the service life of even the best belt. Clean the drive and verify correct alignment and tension according to standard practices.
Quality Statement
The AH96333 is manufactured under controlled conditions with attention to dimensional accuracy and material consistency. It is offered as a reliable aftermarket replacement component, designed to perform to original equipment standards without carrying any brand markings or logos.
